MACRO QUICK CHANGE FIXTURE SYSTEMS
MAXIMIZE YOUR HORIZONTAL MACHINING
CENTER APPLICATIONS
GO FROM ONE HYDRAULIC/PNEUMATIC FIXTURE TO ANOTHER IN MINUTES. FINALLY............. A SOLUTION FOR J.I.T.

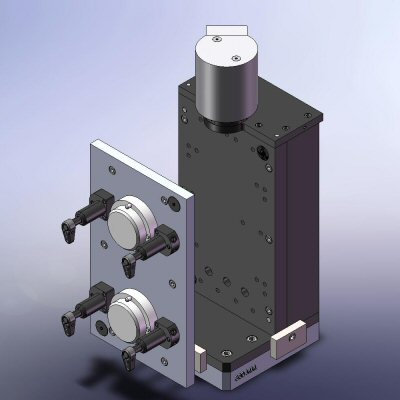

FIXTURE PLATES ARE EASILY EXCHANGED AND
LOCATED TO THE UPRIGHTS WITH A BALL-LOCK MOUNTING SYSTEM.

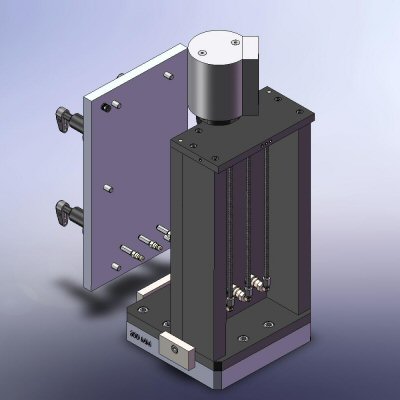

FIXTURE PLATES ARE INTERNALLY MANIFOLD
PORTED AND PNEUMATICALLY/HYDRAULICALLY CONNECTED TO THE ROTARY UNION VIA
QUICK DISCONNECT COUPLINGS.

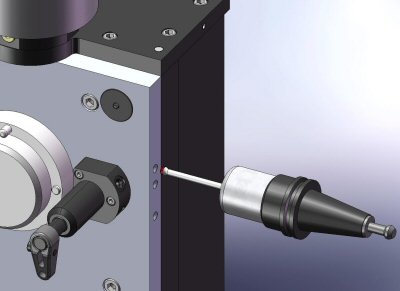

FIXTURE PLATE IDENTIFICATION CAN BE SIGNALED
TO THE CNC THROUGH THE USE OF A BINARY SPOT PATTERN ON THE PLATE AND AN
OPTICAL SPINDLE PROBE.
