MACHINE TOOL ACCESSORIES

MACRO HAS DEVELOPED A NUMBER MACHINE TOOL ACCESSORIES THAT WILL ENHANCE THE PERFORMANCE OF YOUR MACHINE TOOL. THESE CAN BE INTEGRATED WITH YOUR TURNKEY OR BE INTERFACED TO YOUR EXISTING EQUIPMENT. SOME EXAMPLES ARE SHOWN BELOW.

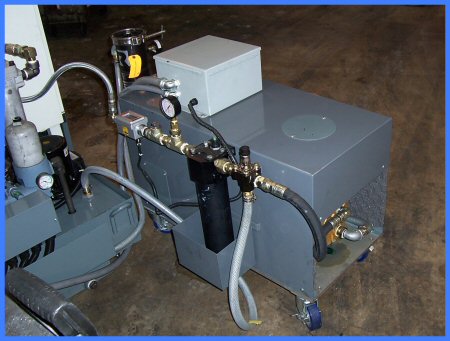

HIGH PRESSURE COOLANT SYSTEMS

• 1000 PSI @ 8 GPM Or 1000 PSI @ 14 GMP

• Flow Switch Monitor Interface to Machine

• Optional Dual Cross Over Filtration

• Optional Filter Alarm

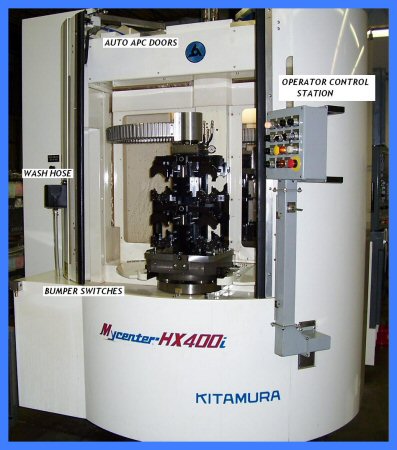

HORIZONTAL MACHINING CENTER

• Custom Operator Panel For Clamping, Door Control, Manual Over-Rides, and Indicator Lamps

• Automatic APC Doors With Bumper Switches

• Wash Hose With Nozzle and Drip Tray

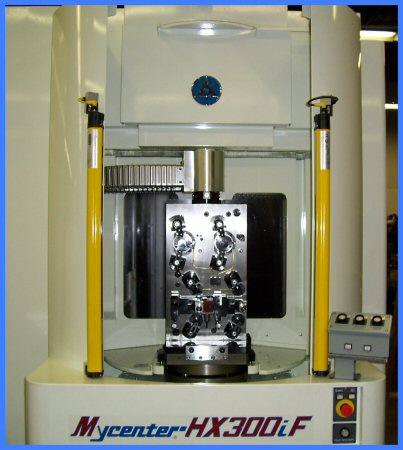

HORIZONTAL MACHINING CENTER

• Small Operator Control Panel

• Light Curtain Protection In Place Of APC Doors

Z SADDLE MOUNTED BROKEN TOOL DETECTOR

The Lid Will Open And The Tool Will Touch A Sensor With The Movement Of The Z Axis.

Requires Custom Macro Program

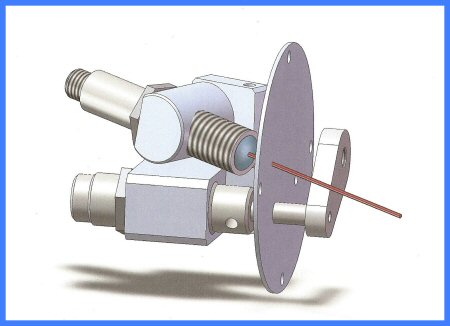

TRIANGULATION LASER BROKEN TOOL DETECTOR

Newly Developed Triangulation Laser Tool Detection With The Laser Emitter And Receiver Mounted Outside The Machining Environment, A Pneumatic Swing Cylinder Opens To Allow The Beam From The Emitter To Be Seen By The Receiver. Thru A Custom Macro Program, The Tool Moves To The Correct Position In X And Y Based On The Triangulation Angles And The Tool Length. If The Beam Is Broken The Tool Is Not.

This System Keeps The Detection Device Out Of The Machining Environment And Allows The Tool To Be Detected With The Call Of A Single M-Code.
