MACHINE TOOL INTEGRATION

BUYING A MACHINE TOOL IS MUCH LIKE BUYING A CAR. YOU CAN HAVE THE ONE IN STOCK, AS IS, OR YOU CAN ORDER ONE FROM THE FACTORY AND WAIT. EVEN IF YOU ARE WILLING TO WAIT (AND PAY MORE) YOU MAY NOT BE ABLE TO GET THE OPTIONS YOU WANT. TYPICALLY, MACHINE TOOLS IN STOCK DO NOT HAVE THE FOLLOWING:

  1. Connection For Hydraulic and Pneumatic Work Holding

  2. High Pressure Power Supplies For Hydraulic Clamping Fixtures

  3. Expanded I/O For Clamping/Robot Integration

  4. Robot PMC Interface and Connection Modules

  5. Safety Control Wiring For Auto Work Holding Systems

ADDITIONALLY, OPTIONS LIKE PROBES, HIGH PRESSURE COOLANT SYSTEMS, AND BROKEN TOOL DETECTORS ARE FIELD INSTALLED.

MACRO CAN BRING ALL THE COMPONENTS TOGETHER AND PROVIDE A COMPLETE WORKING SYSTEM. WE HAVE CAPABILITY IN THE FOLLOWING:

  1. Fanuc PMC Ladder Programming

  2. Integration of Secondary PLCs (Mitsubishi)

  3. Touch Panel Operation Stations (Panasonic)

  4. Spindle Touch Probe Installation

  5. Safety Circuit Design and Installation

  6. Design, Build, and Interface Hydraulic and Pneumatic Systems for Work Holding Fixtures

  7. Machine Side Integration For Robotics

  8. Accessory Installation (Ours Or The Builders)

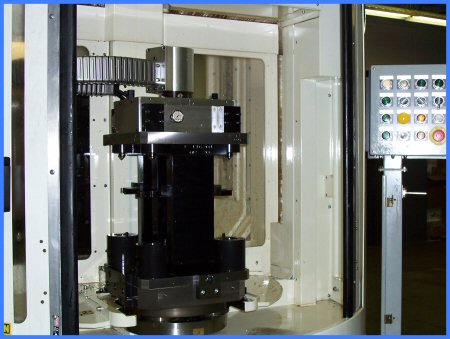

HYDRAULIC CLAMPING FIXTURE INSTALLED ON A HORIZONTAL MACHINING CENTER
FEATURES:
  • Integrated Operator Control Station With Indicator Lamps
  • Automatic APC Doors With Safety Bumper Switch
  • Connection of High Pressure Hydraulic From the Machine Column to the Fixture Union
  • Safety Relay Circuit Integrated to the Machine

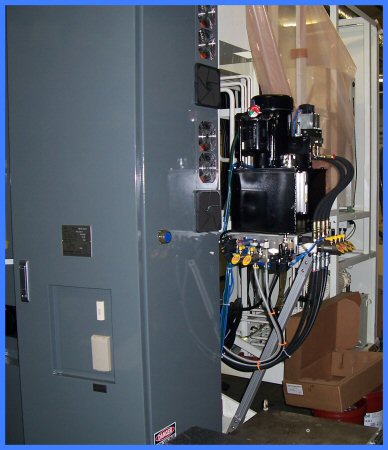

HIGH PRESSURE HYDRAULIC CLAMPING POWER UNIT
FEATURES:
  • 4000 PSI @ 4 GPM
  • Poppet Style Directional Valves For Clamp/Unclamp to a Two Pallet System
  • Digital Switch Pressure Sensing For Clamp/Unclamp Functions (Interfaced to Robotic Loader)
  • Fixture Air Check and Air Blow to Each Fixture
  • Entire System is Interfaced to the Fanuc PMC Ladder

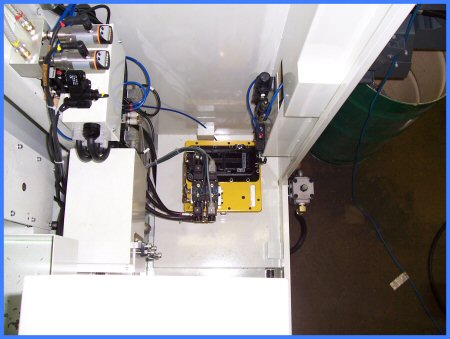

AIR OVER OIL HYDRAULIC POWER SUPPLY, WITH DIGITAL PRESSURE SWITCHES FOR A TWO PALLET CLAMPING SYSTEM..

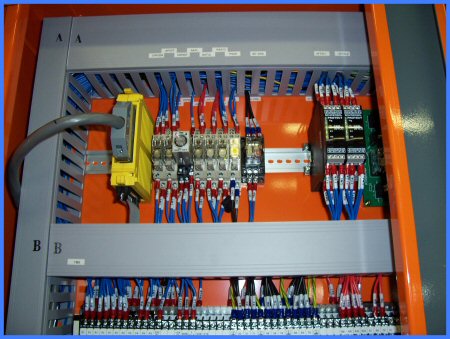

SAFETY INTERFACED TO A HORIZONTAL MACHINING CENTER

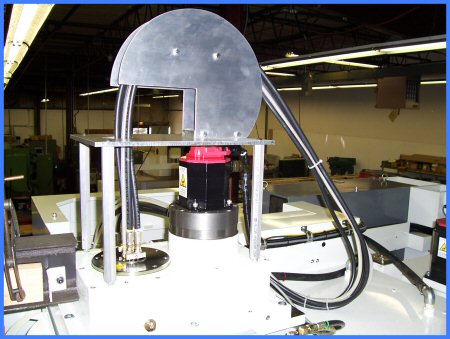

TOP SIDE HOSE CONNECTION AND TRACK SYSTEM FOR A TWO PALLET HORIZONTAL MACHINING CENTER

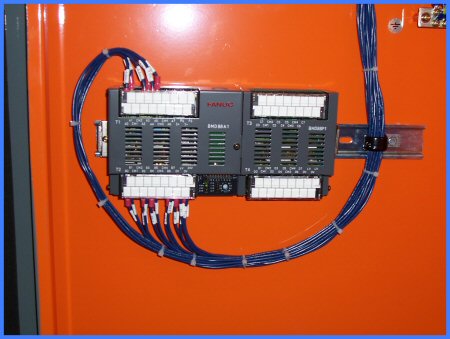

FANUC I/O EXPANSION MODULE
INSTALLED ON A HMC FOR CLAMPING AND ROBOTIC INTERFACE


FANUC ROBOT INTERFACE MODULE
INSTALLED ON HMC WITH PMC LADDER PROGRAMMING FOR COMMUNICATIONS TO A ROBOT LOADER

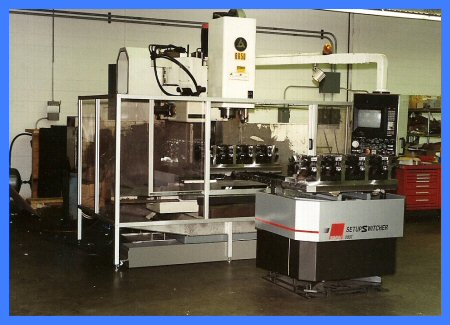

MANUAL WORK (PALLET) SWITCHER INSTALLED ON A VERTICAL MACHINING CENTER
NEW POLYCARBONATE EXPANDED CHIP GUARD ENCLOSURE
